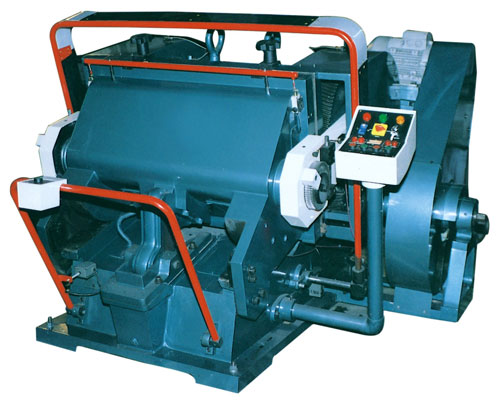

The Kalsi Heavy duty platen (Die) cutting, creasing, embossing presses are particularly designed for die cutting, scoring and creasing work on paper, linoleum, card board, corrugated board, fibre board, cork, leather, P.V.C. material etc. Most handsome and compact patronized model requires minimum floor space, minimum make ready time and provide sufficient hourly production. The Kalsi heavy duty platen die cutting, creasing, embossing presses are offered with widest range of sizes to suit multiple applications. Kalsi presses are ideal to cut corrugated card board & solid fibre boxes, carton decals, puzzles, games, advertising displays, greeting cards, vinyl cutting letters, half cut stickers etc. |
|
| |
|
 |
| click image for bigger view |
| |
|
| Technical Specifications |
| Model |
KDC 29 |
KDC 35 |
KDC 40 |
KDC 46 |
KDC 54 |
KDC 66 |
KDC 70 |
KDC 86 |
| Platen Size (in MM) |
23"x29"(583x735) |
25"x35"(635x890) |
28"x40"(710x1015) |
36"x46"(900x1165 |
41"x54"(1040x1370) |
46"x66"(1170x1675) |
50"x70"(1270x1778) |
55"x86"(1387x2184) |
| Inside chase |
20"x26" |
22"x32" |
25"x37" |
32"x42" |
37"x50" |
42"x62" |
50"x70" |
51"x82" |
| Out put / Hour |
2000 |
1800 |
1600 |
1500 |
1200 |
1000 |
800 |
650 |
| Pressure Exerted (In Ton) |
165 |
190 |
250 |
290 |
330 |
375 |
380 |
450 |
| Power (HP) |
3 |
3 |
5 |
7.5 |
7.5 |
10 |
10 |
15 |
| Floor Space |
60"x45" |
60"x50" |
65"x55" |
70"x60" |
75"x70" |
85"x80" |
90"x85" |
102"x96" |
| Weight (approx) |
2800 kg. |
3700 kg. |
4800 kg. |
6300 kg. |
7500 kg. |
11,500 kg. |
12,000 kg. |
18,000 kg. |
|
|
| |
|
|
|
|
