We offer a wide range of corrugated board & box making machines. We provide these machines in several models and sizes to meet the requirement of related Industry. Corrugation machines are available with normal speed to high speed models and with various fluting options i.e. A, B, C, E & F flutes to meet the requirement both corrugated boxes as well as printed cartons. We also supply the allied machines to make 3, 5, 7, 9 etc. ply corrugated boards & different machines to make complete corrugated box.

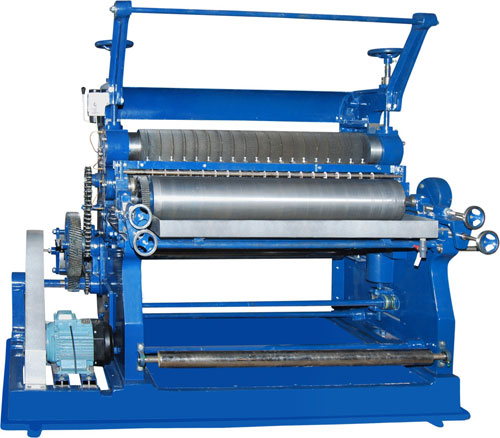

Oblique type high speed model offers high rate of production. The machine is fitted with Gear Box which runs in oil bath. The machine has motorised self loading reel stand, 3heaters & 1 pre heating cylinder. |
|
| |
|
 |
| click image for bigger view |
| |
|
| Technical Specifications |
| Model |
KCO |
KCOB |
KC Vertical |
| SIZES IN INCHES |
32" / 42" / 52" / 62 / 72" |
32" / 42" / 52" / 62 / 72" |
32" / 42" / 52" / 62 / 72" |
| Power (HP) |
7" / 7 / 9.5 / 9.5 / 10.5 |
7" / 7 / 9.5 / 9.5 / 10.5 |
7" / 7 / 9.5 / 9.5 / 10.5 |
| Floor Space (Feet) |
6x16/7x16/8x16/9x16/10x16 |
6x16/7x16/8x16/9x16/10x16 |
5x15/6x15/7x15/8x15/9x15 |
| Heating Load (Kw) |
21 / 27 / 29 / 31 / 31 |
31 / 31 / 31 / 35 / 35 |
21 / 21 / 27 / 27 / 27 |
| Out Put (per minute) |
90 / 90 / 90 / 90 / 90 |
150 / 150 / 150 / 150 / 150 |
50 / 50 / 50 / 50 / 50 |
| Weight (in100 kg) |
45 / 50 / 60 / 65 / 75 |
45 / 50 / 60 / 65 / 75 |
32 / 38 / 42 / 45 / 50 |
|
|
| (3 PLY, 5 PLY AND COMPLETE CORRUGATED PLANT) |
|
|
|
