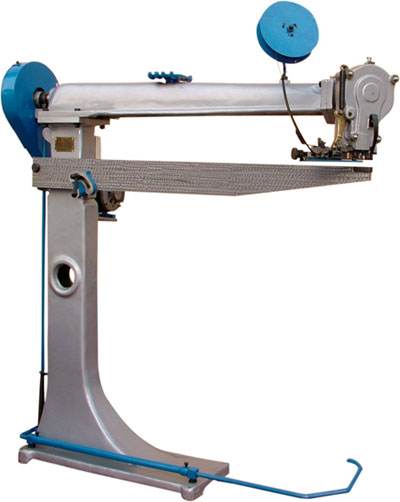

Kmc-Marvel Stitcher is meant for stitching the boxes. It can be supplied with 8 mm(5/16") both in Angular and Straight thickness capacity stitching head and is efficient to speed up to 300 stitches per minute with complete safety and simplicity of operation and maintenance. All parts of the head mechanism are easily accessible for cleaning, lubrication and inter-change of wire parts. |
|
| |
|
 |
| Technical Specifications |
| Model |
BSM |
| Size |
20", 30", 36", 42", 48", 60" (Straight/Angular) |
| Maximum Stitching Capacity |
16 mm |
| Stabbing |
18 mm |
| Stitching wire round (S.W.G.) |
No. 12/25 -14/25 - 17/25 |
| Speed |
300 Staple/Min. |
| Staple Crown |
12.5 mm |
| Power required |
1/2 Hp Single/Three Phase Motor |
|
|
