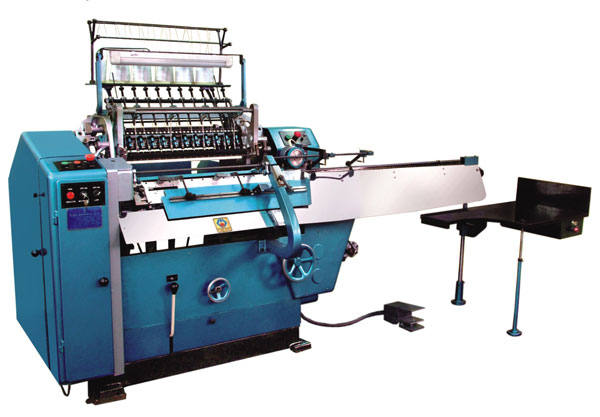

It is an ideal machine for section sewing of hard bound and paper back books. The machine is completely risk free as signatures are put on a moving chain. The variable speeds of the machine can be monitored with a knob. One can get double output on this machine in comparison to an ordinary machine.
click image for bigger view
Technical Specifications
Model
KMC 7000
KMC 10000
Largest Size of book
100 to150 Section/mm
610 x 330 mm (24" x 13")
Smallest Size of book
150 x 100 mm (6" x 4")
150 x 125 mm (6" x 5")
Number of Stitches
up to 7sets
up to 11 sets
Speed
70 to 110 signatures per min.
Speed depends upon the opreator
50 to 90 signatures per min.
Speed depends upon the opreator
Motor
0.75 KW (1 HP), 1400 rpm
with variable speed controller
0.75 KW (1 HP), 1400 rpm
with variable speed controller
